Stainless Steel Pipe

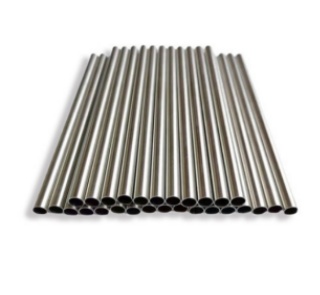

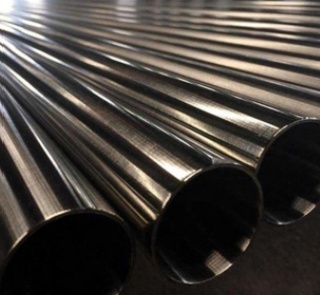

303 Stainless Steel Pipe
303 stainless steel is an austenitic acid stainless steel containing sulfur and selenium that is easy-cutting and wear-resistant. It is used in situations where easy cutting and high surface finish are required.
It is relatively easy to perform cold and hot processing for 303 stainless steel pipe given its superior plasticity and toughness. It can meet the processing needs of various complex shapes and does not crack. Good toughness and strength in low temperature environments make it suitable for applications that need to go with low temperature environments. Besides, 303 stainless steel pipe can still maintain high strength and good fatigue resistance under high temperatures, and is suitable for structural parts and fasteners in high temperature environments. As a general-purpose stainless steel, 303 stainless steel has a selection of application of uses like the food industry, chemical industry, petroleum, pharmaceutical and other fields to meet various needs.
Product Parameters
| Product Name | 303 Stainless Steel Pipe |
|---|---|
| Type | Steel Pipe |
| Outer Diameter (Round Tube) | 4mm - 200mm |
| Outer Diameter (Square Tube) | 10×10mm - 100×100mm |
| Outer Diameter (Rectangular Tube) | 10×20mm - 50×100mm |
| Wall Thickness | 0.6mm - 6.0mm |
| Length | 1 - 6 meters (customizable) |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. |
| Scope of Application | Food processing, textile operations, breweries, water treatment plants, oil & gas processing, fertilizers and pesticides, chemical applications, construction, pharmaceuticals, auto parts, etc. |
| Certificate | ISO, SGS, BV, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Edge Processing | Edging, Trimming |
Chemical Composition
| C | Si | Mn | Cr | Ni | S | P |
|---|---|---|---|---|---|---|
| ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 18.0 – 20.0 | 8.0 – 12.0 | ≤ 0.03 | ≤ 0.035 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
|---|---|---|---|
| ≥ 520 | ≥ 205 | ≥ 40 | ≤187HB / ≤90HRB / ≤200HV |
Physical Performance
| Density (g/cm³) | Modulus of Elasticity (GPa) | Thermal Expansion (10⁻⁶/°C) | Thermal Conductivity (W/m·K) | Resistivity (μΩ·cm) |
|---|---|---|---|---|
| 8.03 | 193 | 16.9 | 16.2 | 72 |
