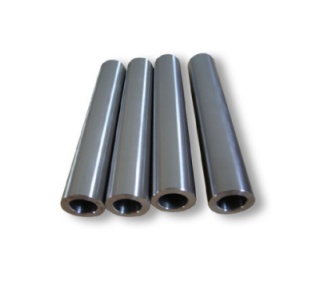

Nickel Alloy 200 Pipe

Nickel Alloy 200 pipe is made of a pure nickel alloy containing a minimum of 99% nickel. This alloy is the purest nickel alloy and is often chosen for use inly corrosive environments.

  Nickel 200 is a high-purity metal consisting primarily of nickel with a purity of 99.0%. Due to its excellent physical and chemical properties, it is widely used in various fields. Nickel alloy 200 pipe has high corrosion resistance, can withstand corrosion from various acid and alkali liquids, and maintains stable performance at high temperatures. In addition, nickel 200 pipe has good thermal and electrical conductivity and is an important electrical and thermal conductive material. This metal can be processed and heated through various processes to make products of different shapes and specifications. Lastly, Nickel 200 is a pure commercial nickel with extremely low carbon content that has been approved for use in high temperature environments up to 1230°C.

Product Parameters

Product NameNickel Alloy 200 Pipe
Outer Diameter Round Pipe: 4mm - 200mm
Square Pipe: 10*10mm - 100*100mm
Rectangular Pipe: 10*20mm - 50*100mm
Wall Thickness0.6mm - 6.0mm
Length1 - 6 meters (Length can be customized)
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling

Chemical Composition

C Al Si S Ti Cr Mn Fe Ni Cu
0.1 max 0.15 - 0.60 1.0 max 0.015 max 0.15 - 0.60 19.0 - 23.0 1.5 max 39.5 min 30.0 - 35.0 0.75 max

Mechanical Properties

Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation % in 2 inches
75 30 30

Physical Performance

Item Value Temperature (°C)
Density 7.94 g/cm³ Room
Specific Heat 0.11 Kcal/kg·C 21°
Melting Range 1357 - 1385°C -
Modulus of Elasticity 196.5 KN/mm² 20°
Electrical Resistivity 98.9 µΩ·cm 20°
Coefficient of Expansion 14.4 µm/m·°C 20 - 100°
Thermal Conductivity 11.5 W/m·K 20°
