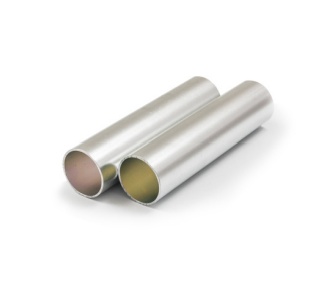

Inconel 601 Pipe

Inconel 601 pipe is made of a high-strength, corrosion-resistant nickel-based alloy that is widely used in various high-temperature equipment. With good mechanical properties and corrosion resistance, Inconel 601 is widely used in aviation, chemical industry, marine engineering and other fields.

  Inconel 601 is a nickel-based high-temperature alloy whose main components are nickel, chromium, aluminum and iron. Nickel accounts for the majority, with a content generally above 58%, while chromium and aluminum account for about 19% and 1.0% respectively. In addition, it also contains small amounts of elements such as copper and manganese, which can enhance the strength and corrosion resistance of the material. Inconel 601 pipes are of excellent high temperature strength, corrosion resistance and oxidation resistance. At high temperatures, its strength and hardness can be maintained at a high level, while having good plasticity and toughness. In an acidic environment, Inconel 601 pipe performs good corrosion resistance and can effectively resist erosion by corrosive media such as chloride ions and sulfides.

Product Parameters

Product NameInconel 601 Pipe
Outer Diameter Round Pipe: 4mm - 200mm
Square Pipe: 10*10mm - 100*100mm
Rectangular Pipe: 10*20mm - 50*100mm
Wall Thickness0.6mm - 6.0mm
Length1 - 6 meters (Length can be customized)
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling

Chemical Composition

C Al Si S Ti Cr Mn Fe Ni Cu
0.1 max 0.15 - 0.60 1.0 max 0.015 max 0.15 - 0.60 19.0 - 23.0 1.5 max 39.5 min 30.0 - 35.0 0.75 max

Mechanical Properties

Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation % in 2 inches
75 30 30

Physical Performance

Item Value Temperature (°C)
Density 7.94 g/cm³ Room
Specific Heat 0.11 Kcal/kg·C 21°
Melting Range 1357 - 1385°C -
Modulus of Elasticity 196.5 KN/mm² 20°
Electrical Resistivity 98.9 µΩ·cm 20°
Coefficient of Expansion 14.4 µm/m·°C 20 - 100°
Thermal Conductivity 11.5 W/m·K 20°
