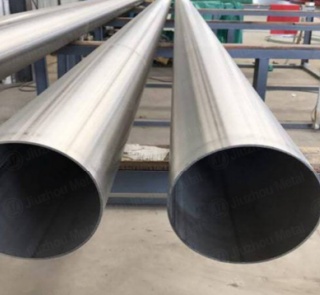

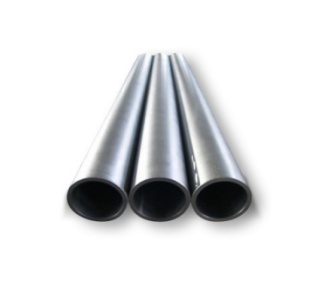

Hastelloy C-276 Pipe

Hastelloy C276 pipe is made of a high-performance metal material with excellent corrosion resistance and mechanical properties. It is widely used in metal materials under high temperature, high pressure, and corrosive environments, such as petrochemical, chemical fertilizer, nuclear industry and other fields.

  Hastelloy C276 is a nickel-based alloy that has excellent corrosion resistance and high temperature strength. Due to the unique composition and specially processed processing technology, Hastelloy C276 pipe can maintain stable performance in various harsh environments. Its high corrosion resistance makes it widely used in the marine, chemical and petroleum industries. In high-temperature environments, the strength and ductility of Hastelloy C276 can maintain a high level, which allows it to maintain stable performance in high-temperature environments. In addition, the welding performance of Hastelloy C276 pipe is also very good and it can be connected through various welding processes. Because of the particularity of its composition and processing technology, the processing of Hastelloy C276 pipe requires special equipment and technology.

Product Parameters

Product NameHastelloy C-276 Pipe
Outer Diameter Round Pipe: 4mm - 200mm
Square Pipe: 10*10mm - 100*100mm
Rectangular Pipe: 10*20mm - 50*100mm
Wall Thickness0.6mm - 6.0mm
Length1 - 6 meters (Length can be customized)
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
CertificateISO, SGS, BV
Production TechnologyHot Rolling, Cold Rolling

Chemical Composition

C Al Si S Ti Cr Mn Fe Ni Cu
0.1 max 0.15 - 0.60 1.0 max 0.015 max 0.15 - 0.60 19.0 - 23.0 1.5 max 39.5 min 30.0 - 35.0 0.75 max

Mechanical Properties

Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation % in 2 inches
75 30 30

Physical Performance

Item Value Temperature (°C)
Density 7.94 g/cm³ Room
Specific Heat 0.11 Kcal/kg·C 21°
Melting Range 1357 - 1385°C -
Modulus of Elasticity 196.5 KN/mm² 20°
Electrical Resistivity 98.9 µΩ·cm 20°
Coefficient of Expansion 14.4 µm/m·°C 20 - 100°
Thermal Conductivity 11.5 W/m·K 20°
